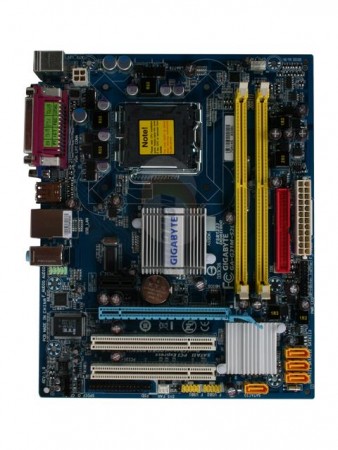

Placa Mãe Gigabyte Ga-g31m-s2l Intel G31 Core2 1333 Box Código do Produto 000019

Placa Mãe Gigabyte Ga-g31m-s2l Intel G31 Core2 1333 Box Código do Produto 000019

   Especificações
CPU
  1. Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® Dual-Core processor/Intel® Celeron® processor in the LGA 775 package
    (Go to GIGABYTE's website for the latest CPU support list.)
  2. L2 cache varies with CPU
Front Side Bus
  1. 1333/1066/800 MHz FSB
Chipset
  1. North Bridge: Intel® G31 Express Chipset
  2. South Bridge: Intel® ICH7
Memory
  1. 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR2 800/667 MHz memory modules
    (Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics
  1. Integrated in the North Bridge
Audio
  1. Realtek ALC662 codec
  2. High Definition Audio
  3. 2/4/5.1-channel
  4. Support for S/PDIF Out
  5. Support for CD In
Expansion Slots
  1. 1 x PCI Express x16 slot
  2. 1 x PCI Express x1 slot
  3. 2 x PCI slots
Storage Interface South Bridge:
  1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
  2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
  1. Integrated in the South Bridge
  2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 4 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x system fan header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x CD In connector
  11. 1 x S/PDIF Out header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x chassis intrusion header
  14. 1 x power LED header
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x parallel port
  4. 1 x serial port
  5. 1 x D-Sub port
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8718 chip
H/W Monitoring
  1. System voltage detection
  2. CPU temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU fan speed control
BIOS
  1. 1 x 4 Mbit flash
  2. Use of licensed AWARD BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for Virtual Dual BIOS
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft® Windows Vista/XP
Form Factor
  1. Micro ATX form factor; 24.4cm x 19.3cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.



Valor: R$ 330,00
